How to Detach / Attach Multi-purpose Tray

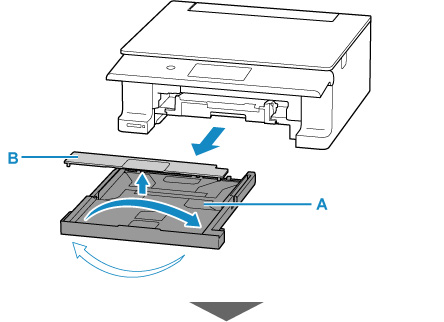

Take the cassette (A) out of the printer and remove the cassette cover (B).

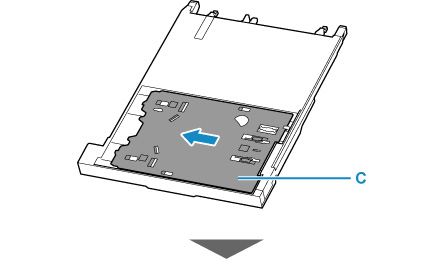

Turn cassette over and remove multi-purpose tray (C).

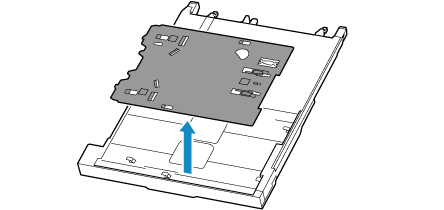

Slide the multi-purpose tray, take it out of the six tabs, and then lift it.

Important

• Be sure to remove any orange shipping tape on the multi-purpose tray.

Take cassette out of printer.

Be sure to remove any paper.

Turn cassette over and attach multi-purpose tray to it.

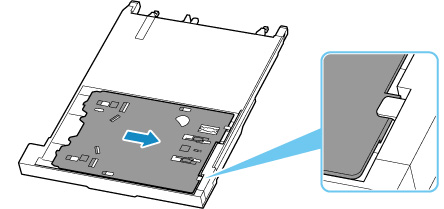

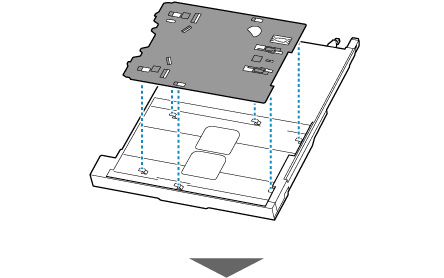

Turn the multi-purpose tray so that its underside faces up, align it with the six tabs, and then slide to attach.

Important

• Insert the multi-purpose tray, making sure that its holes are aligned with the tabs on the back of the cassette. If the multi-purpose tray is not properly attached, it may be damaged when the cassette is inserted into the printer.
